Heuristics

A heuristic h(n) estimates the remaining cost from a node to the goal. It is what turns blind search into informed search: Greedy uses h alone, A* uses g + h. A heuristic is admissible if it never overestimates the true remaining cost — admissibility is what makes A* and IDA* optimal.

The heuristic= argument accepts either a built-in name (str) or a custom Python callable h(node, goal) -> float — in any domain:

gf.search(maze, algorithm="astar", heuristic="manhattan")              # built-in
gf.search(maze, algorithm="astar", heuristic=lambda n, g: abs(n[0]-g[0]) + abs(n[1]-g[1]))

Built-in grid heuristics

heuristic	Formula	Use when	Admissible on…
zero	0	you want uninformed behaviour	always (A*→UCS)
manhattan	|Δrow| + |Δcol|	4-connected grids	4-connected unit grids
euclidean	√(Δrow² + Δcol²)	any-angle / diagonal travel	always (under-estimates on grids)
octile	(L−S) + √2·S over the long/short legs	8-connected grids	8-connected grids with diagonal cost √2

zero makes any informed algorithm behave like its uninformed counterpart — handy for A/B comparisons. On an 8-connected grid (diagonal=True), use octile: it is the exact diagonal distance and stays admissible, whereas manhattan would overestimate and lose A*'s optimality guarantee.

Weighted terrain

On a weighted grid the geometric heuristics count steps, so they stay admissible only when every terrain cost ≥ 1 (the usual case). If costs can be below 1, a step-counting heuristic may overestimate — use zero (→ Dijkstra) or scale the heuristic by the minimum terrain cost to keep A* optimal.

Stronger heuristic, less work

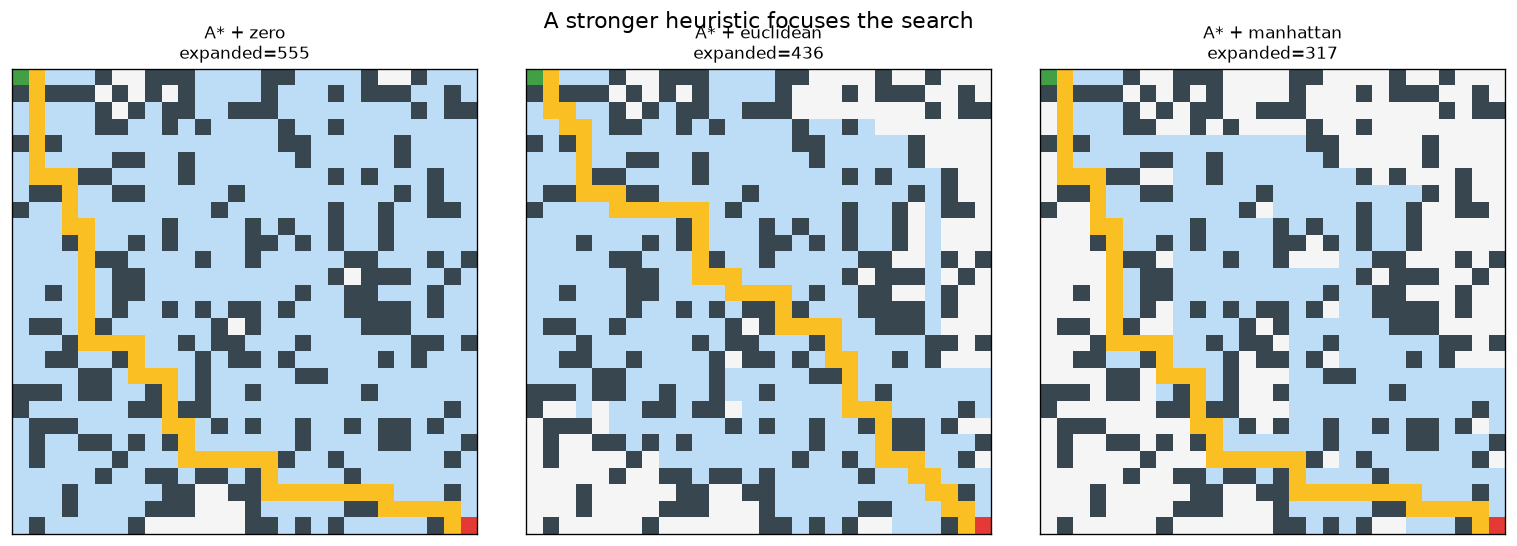

The closer (but still admissible) the estimate, the more the search focuses on the goal and the fewer nodes it expands. Same maze, A* with three heuristics:

zero expands like UCS (floods the map); euclidean already narrows it; manhattan — the tightest admissible estimate on a 4-connected grid — focuses the search the most. All three return the same optimal cost; they differ only in work.

Custom heuristics

Pass a callable h(node, goal) -> float instead of a name. The node and goal are handed to your function in the domain's natural form, so the signature differs per domain:

GridExplicit graphImplicit graph

Nodes are (row, col) tuples. Here is a hand-written Chebyshev distance (useful on 8-connected grids):

def chebyshev(node, goal):
    return float(max(abs(node[0] - goal[0]), abs(node[1] - goal[1])))

gf.search(maze, algorithm="astar", heuristic=chebyshev, diagonal=True)

Nodes are integer ids. With coordinates per node you can use straight-line distance to turn search_graph into a real A*:

import math
xy = {i: (x_i, y_i) for i in range(n)}   # your node coordinates

def straight_line(u, v):
    (ax, ay), (bx, by) = xy[u], xy[v]
    return math.hypot(ax - bx, ay - by)

gf.search_graph(n, edges, 0, n - 1, algorithm="astar", heuristic=straight_line)

States are ints or tuples of ints (whatever your successor function uses):

def successors(s):
    return [(s + 1, 1.0), (s * 2, 1.0)] if s < 100 else []

# admissible: at least one operation remains while below the goal
def h(state, goal):
    return 0.0 if state >= goal else 1.0

gf.search(successors, start=1, goal=27, algorithm="astar", heuristic=h)

A custom callable works with every priority-based algorithm (greedy, astar, weighted_astar, ida_star, beam). Built-in heuristics run in pure Rust with the GIL released; a Python callable reacquires the GIL once per node it scores.

Designing one

• Keep it admissible for optimal A*/IDA*: h(n) ≤ true remaining cost.
• Make it consistent (h(n) ≤ cost(n, n') + h(n')) and A* never needs to re-open a node — the strongest, best-behaved class.
• Trade optimality for speed deliberately with weighted_astar(weight=w): it inflates h by w, returning a path at most w× the optimum.

In Rust, a heuristic is a tiny trait impl:

use graphfinder_core::{Heuristic, Cell};

struct Chebyshev;
impl Heuristic<Cell> for Chebyshev {
    fn estimate(&self, n: &Cell, goal: &Cell) -> f64 {
        ((n.row - goal.row).abs().max((n.col - goal.col).abs())) as f64
    }
}

See Algorithms for how h enters the priority and Visualization to see its effect.
